HS252



Extras ▼



The HS252 is a small camera tube.

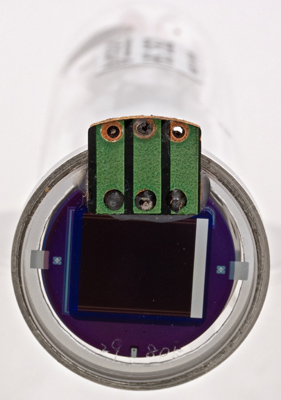

The faceplate and target connections.

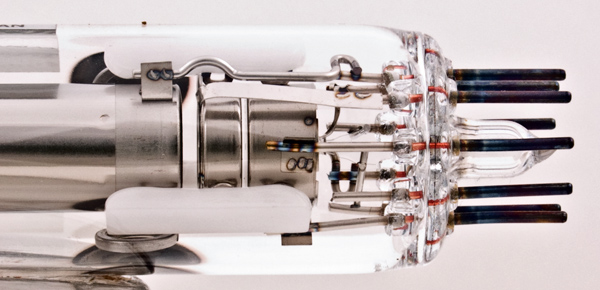

The cathode and electron lens. Deflection of the beam across the target would be by an external deflection yoke.

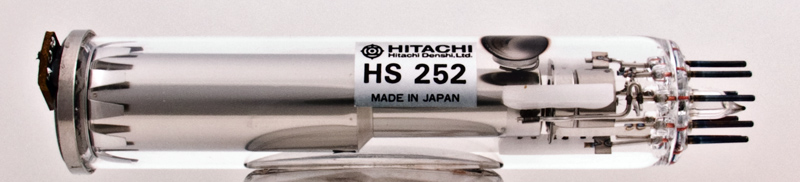

A general view.
The end window envelope is 26 mm in diameter, and excluding the base pins is 120 mm tall.
Reference: Observation.
