ELY-18A202B



Extras ▼

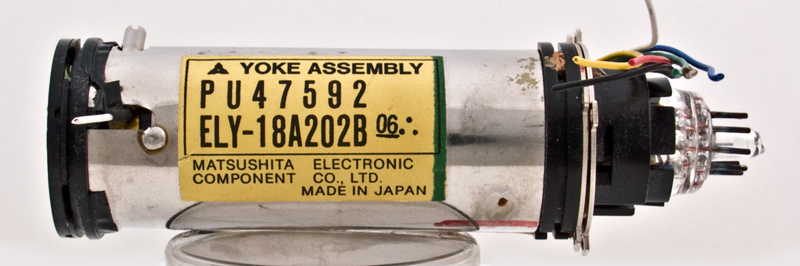

The ELY-18A202B deflection yoke houses an unknown camera tube.
See also ELY-18A208D.

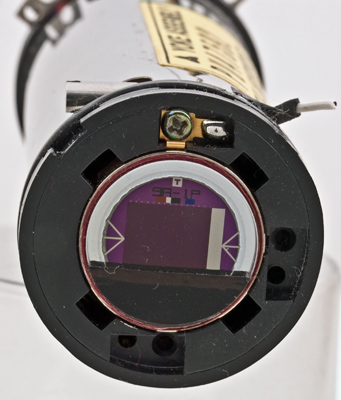

The face-plate and the 30 mm diameter deflection yoke.

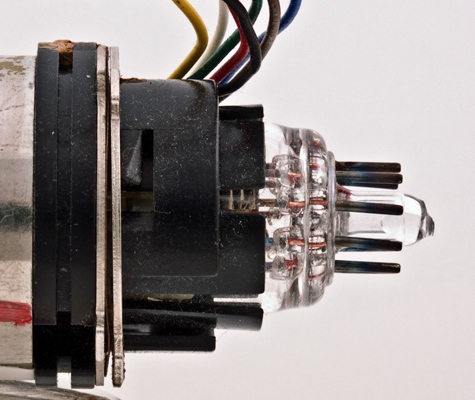

The miniature eight pin base and connections to the deflection coils.
The end window envelope is 18 mm in diameter, and excluding the base pins is 104 mm tall.
Reference: Observation.



Updated June 21, 2013.
