75C1

Sensibly equivalent to:
0A3 SR51 STR75/60
See also:
75C1 Advert - 75 Volt Stabilisers Advert - Voltage Reference and Stabiliser Tubes Advert

Extras ▼



The 75C1 is a high stability voltage stabiliser. The output voltage is 75 Volts and for currents of 2 - 60 mA the regulation is between 5 and 8 volts.

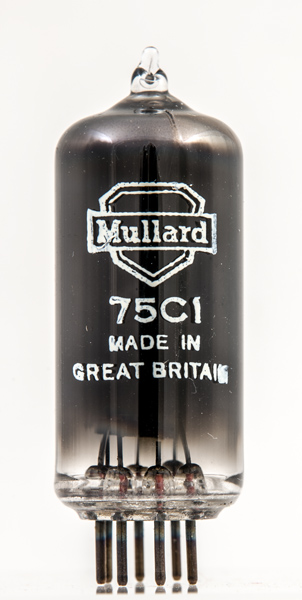

The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 45 mm tall.
References: Datasheet & 1040. Type 75C1 was first introduced in 1957.



Pin Connections
B7G
1
2
3
4
5
6
7
a
k
ic
ic
ic
ic
ic



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
75
30
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December05, 2016.
