P3580



Extras ▼

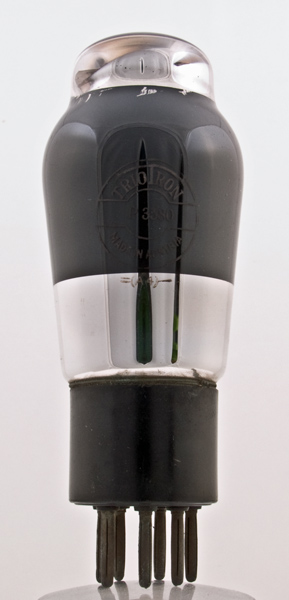

The P3580 is an audio output pentode for use in universal mains sets ie with or without mains transformers from a time when DC mains still existed.
Made by the Austrian company Triotron it was produced with the Ct8 base and the B7 for the British market.
The output is 4 Watts with a 320Ω cathode resistor and an anode load of 4,500Ω
The classic envelope is 49 mm in diameter, and excluding the B7 base pins is 113 mm tall.
References: 1043. Type P3580 was first introduced in 1936. See also 1936 adverts.



Pin Connections
B7
1
2
3
4
5
6
7
nc
g1
g2
h
h
k,g3
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
26.0
0.2
250
250
nc
36
4.5
