6B7S



Extras ▼

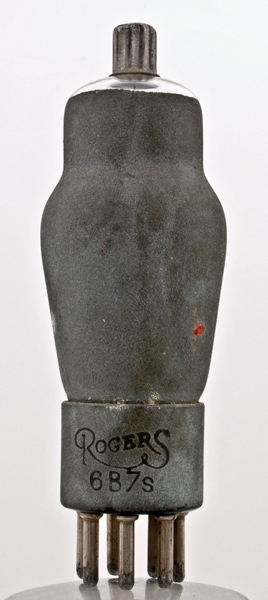

The 6B7S is a double diode pentode for use as detector, avc rectifier and first audio amplifier in broadcast superhet receivers. This exhibit from the Canadian company Rogers has a zinc metal paint coating and the suffix S probably indicates that this is a screened valve.

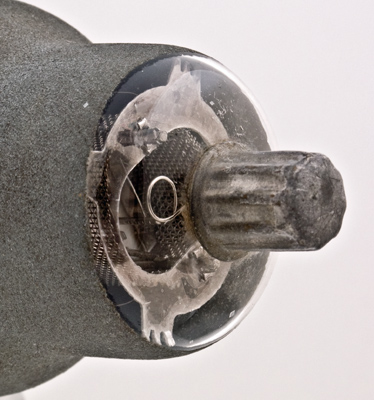

The top cap is fluted and inside the envelope the internal screen can be seen.

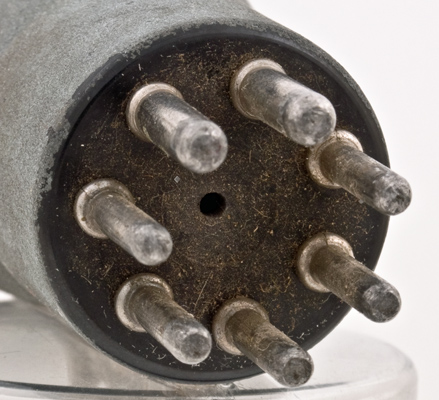

The UX7 base and solid pins.
The classic envelope is 39 mm in diameter, and excluding the UX7 base pins is 100 mm tall.
References: Datasheet & 1043. Type 6B7S was first introduced in 1933.



Pin Connections
UX7
1
2
3
4
5
6
7
tc
h
a
g2
a(d2)
a(d1)
k
h
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
125
-3
10
2.3
0.6M
1.33
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 28, 2013.
