This viewfinder tube was made as a standard 'catalogue' part for a camcorder use. A whole series of similar tubes were made in varying sizes but all capable of excellent image reproduction.

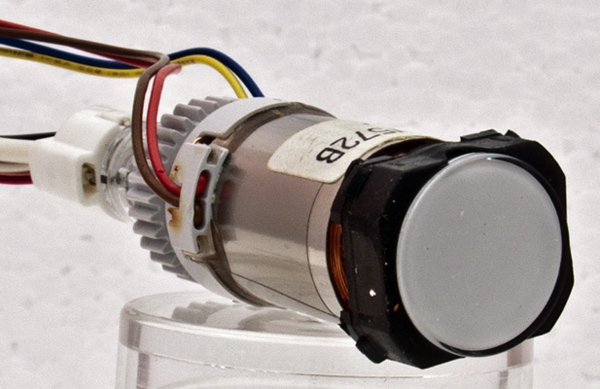

Unlike our other M01KQM07WB this exhibit is complete with base, scanning coils and faceplate.

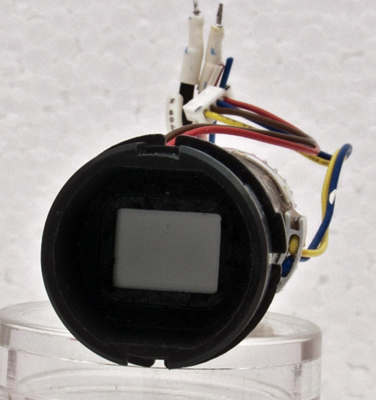

The tube face with faceplate.
The aperture is 10.5 x 8 mm, and the tube fits into a 22 mm diameter hole. The scanning coils are 16.5 mm in diameter at the metal case and 38 mm long.
The end window is 16.00 mm in diameter. The neck is 10.00 mm in diameter and excluding the base pins is 58.00 mm tall.
Reference: Observation.
