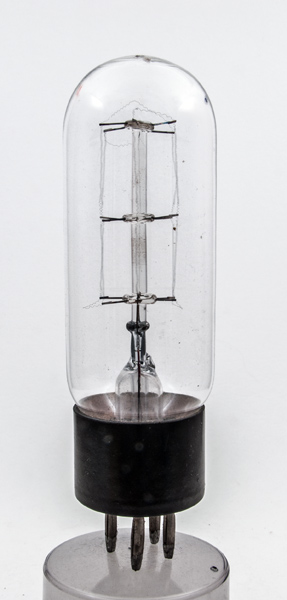

This exhibit is a barretter or current stabiliser for series heater chains. However, the glass carries no identification.

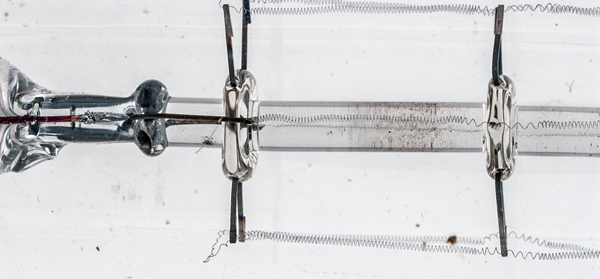

A closer view of the coiled iron wire. The stabilised current is probably 200 mA.
The wide glass tube envelope is 39 mm in diameter, and excluding the B4 base pins is 114 mm tall.
Reference: Observation.
