33HE7



Extras ▼



The 33HE7 is a diode beam tetrode. The design purpose was as a damping (efficiency) diode and line output valve in TV receivers.
The 33HE7 is part of a compactron series that differ only in heater specifications: 6HE7, 12HE7 and 58HE7.

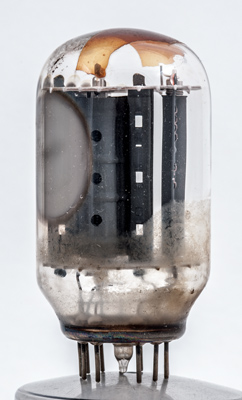

The efficiency diode anode.

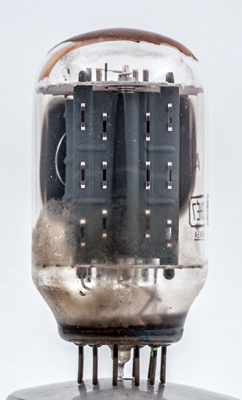

The beam tetrode on the left with the diode on the right. Note the diameter of the diode cathode - this is a heavy duty device.

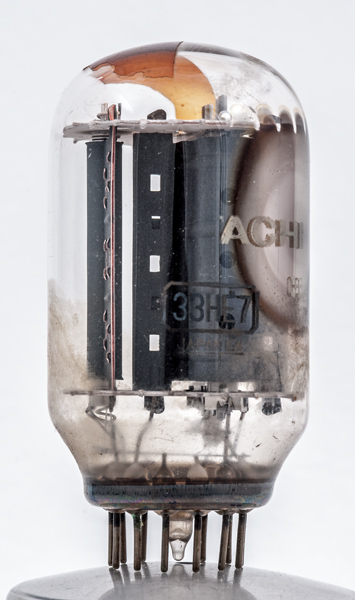

The wide glass tube envelope is 38 mm in diameter, and excluding the B12C base pins is 68 mm tall.
Reference: Data-sheet. Type 33HE7 was first introduced in 1973. See also 1973 adverts.



Pin Connections
B12C
1
2
3
4
5
6
7
8
9
10
11
12
h
a(d)
nc
k(d)
a
nc
ic
k,bp
g1
ic
g2
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
33
0.3
200
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 08, 2022.
