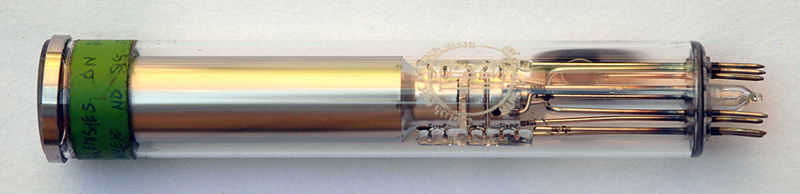

This is an English Electric videcon (vidicon) television camera tube.

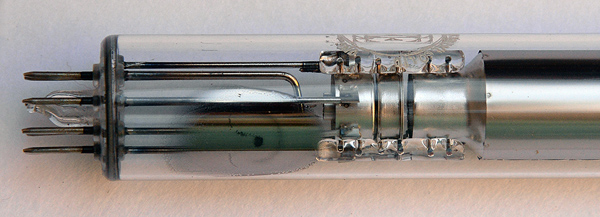

The electron gun assembly.

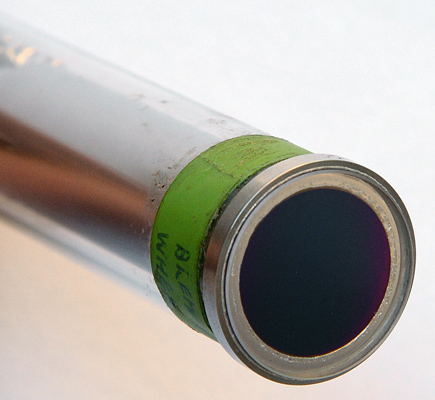

The end window and light sensitive target.
The end window envelope is 26 mm in diameter, and excluding the base pins is 145 mm tall.
Reference: Observation.
