The catkin design dates to 1933 and 1934. This exhibit has no identification but is believed to be for battery operation.

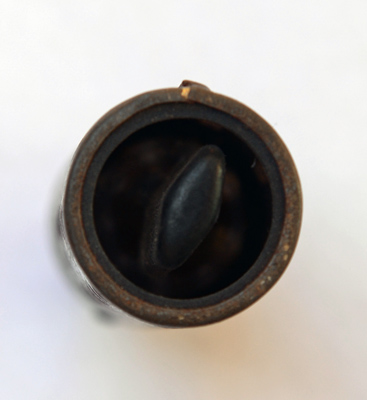

The shaped anode has a flattened diamond cross section.

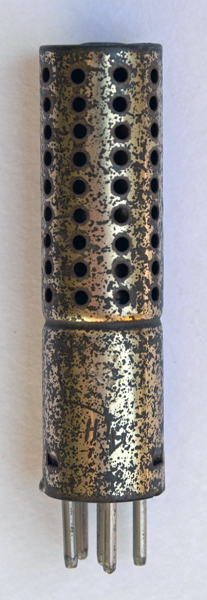

The thin metal envelope is 26 mm in diameter, and excluding the B5 base pins is 94 mm tall.
Reference: Observation.


Updated June 29, 2014.
shape:catkin construction:pinch type:triode age:1930.1940 base:b5 pins:5 pin:
