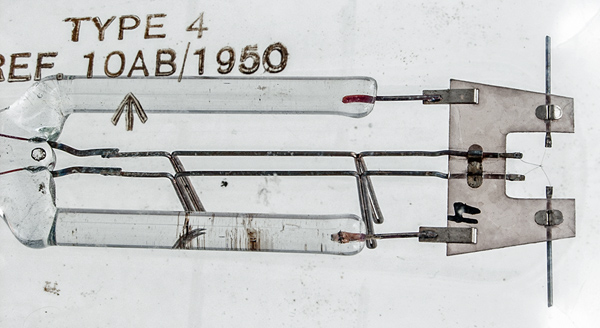

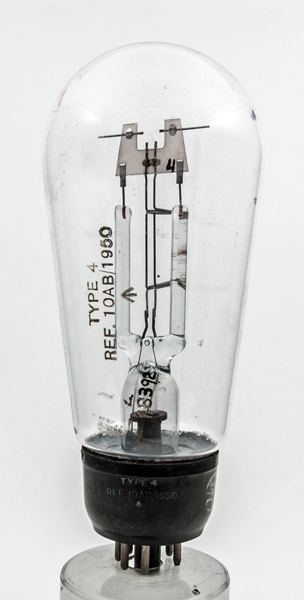

The Type 4 is a bolometer, a device for measuring small levels of power. We also have the Type 7 and lack details for both.![](../pics/abo0054a.jpg)

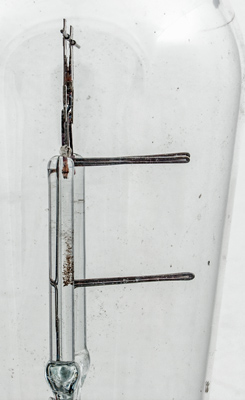

The active component is the tiny bead at the head.![](../pics/abo0054b.jpg)
The side bars. We have no details of their function.![](../pics/abo0054c.jpg)
A closer view of the active bead. The horizontal wire is probably a support, but it could be that the horizontal rods form a dipole and the incident radiation causes a change of resistance in the bead. The bead would then be connected in a bridge arrangement.The balloon envelope is 64 mm in diameter, and excluding the IO base pins is 140 mm tall.Reference: Observation. |
