19AQ5


See also:
Brimar American Miniature Valves 50C5, 19AQ5, 35W4, 12BE6, 12BA6 & 12AT6 Advert

Extras ▼



The 19AQ5 is an audio output beam tetrode. The ratings, except for the heater match the 6AQ5 that is the direct equivalent of the EL90.
Power output is up to 4.5 Watts at 8% total harmonic distortion.

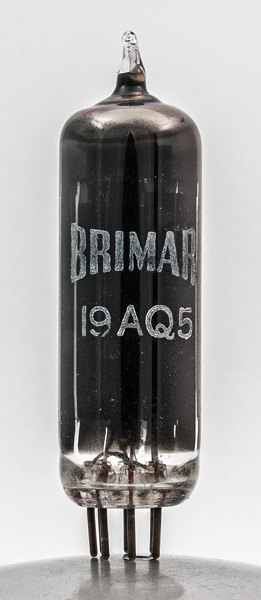

The nearly opaque glass prevents inspection of the construction. The valve is clearly marked as UK made.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 60 mm tall.
References: Datasheet & 1040.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k,bp
h
h
a
g2
g1



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
19.0
0.15
250
250
-12.5
45.0
-
52,000
4.1
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 25, 2014.
