VO2



Extras ▼



The VO2 is a battery octode mixer. In 1938, three years after the VO2 was issued the, same valve was mounted onto the CT8 base and then offered as the VO2S.

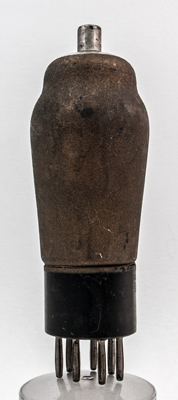

The reverse is plain gold metalised paint.
The classic envelope is 45 mm in diameter, and excluding the B7 base pins is 117 mm tall.
Reference: 1043. Type VO2 was first introduced in 1935.



Pin Connections
B7
1
2
3
4
5
6
7
tc
g2
g1
g3,g5
f
f
m
a
g4



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
2.0
0.13
135
45
-1.0
0.7
0.6
2.5M
0.27
