6AU6WC



Extras ▼

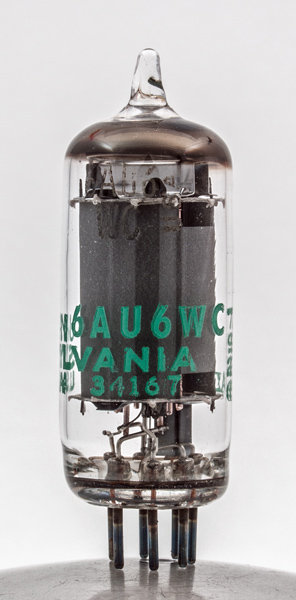

This exhibit is a 6AU6WC sharp cut-off pentode. Variants of the basic 6AU6 RF pentode are numerous. The 6AU6A was equipped with a heated with defined warm-up times. The 6AU6WB is designed to offer stable performance under conditions of high - temperature, vibration, shock and altitude. The 'W' denotes the special quality and the final letter indicates the particular variant. Sadly we do not have the data-sheet for the 6AU6WC only the 6AU6WB.
This is a true pentode with three wire grids. The control grid is wound on copper supports for better heat conduction. Below the lower mica the anode is shielded down to thebase pin.
The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins the valve is 47 mm tall.
References: Datasheet & 4054.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
g3,s
h
h
a
g2
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
150
-1
10.6
4.3
1.0M
5.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 01, 2015.
