43IU

Sensibly equivalent to:
1561 1821 1867 1867 441U 442BU 460BU 506BU A11B A11C A11D APV4 APV4 CV1039 CV3760 DW2 DW4-350 DW4-500 IW4-350 IW4-500 MU12 MU14 R1 R2 R3 R42 R4A U10 U12 U14 UU120/350 UU120/500 UU60/250

Extras ▼

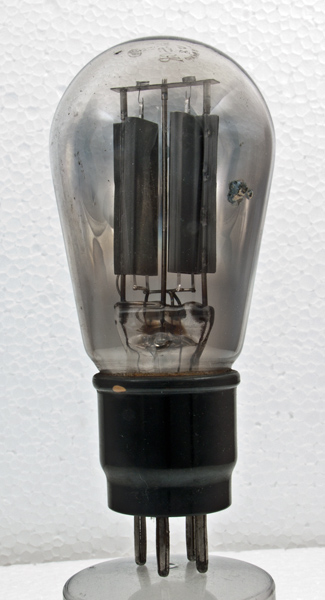

This Cossor rectifier, 43-IU (43IU), is a full wave device with a directly heated oxide coated ribbon filament.
Testing the filament shows that it is a 4.0 V 1.0 A type and that stronly suggests that this is a 43-IU.

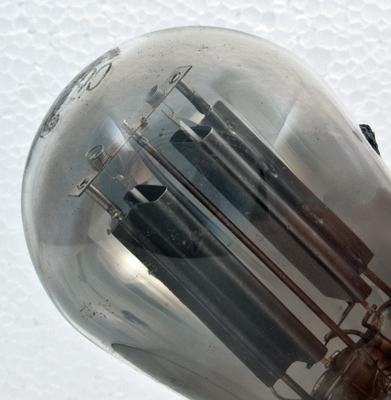

The oxide coated filament ribbons are held from the top mica in tensioning springs.

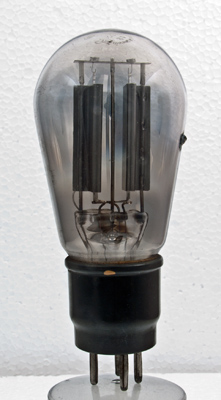

The etched lettering on the dome carries the Cossor name and makers codes. The Type designation was contained within the paper label the remains of which can be seen on the right.

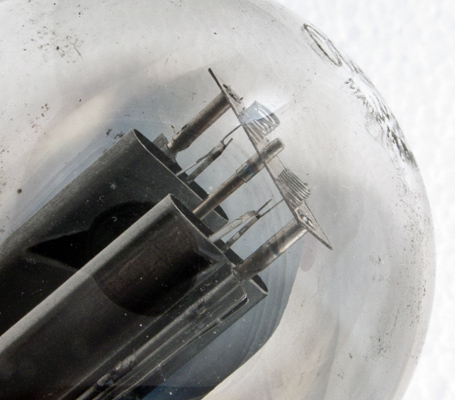

A close-up of the top mica and ribbon filaments.
The balloon envelope is 54 mm in diameter, and excluding the B4 base pins is 112 mm tall.
References: 1040 & 1043. Type 43IU was first introduced in 1937.



Pin Connections
B4
1
2
3
4
a(2)
a(1)
f
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
2.0
350
120
