VO13



Extras ▼

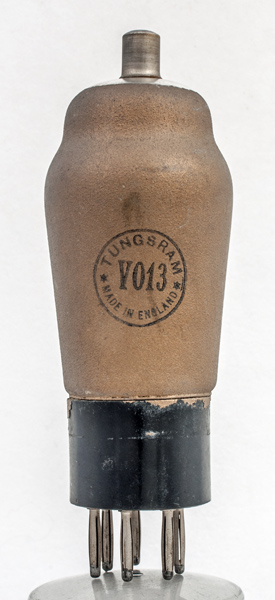

The VO13 is an octode frequency changer. The Mullard FC13C is a close match but not identical.
In use the local oscillator would be formed between the cathode and second grid. The signal usually being added at g4, the top cap. Grids three and five formed the screening grids.

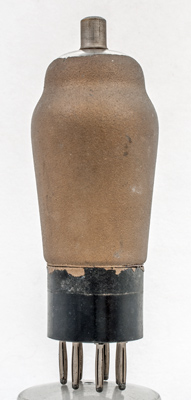

Such golden external metalised valves can be seen in radio sets from the mid1930's to early 1940's.

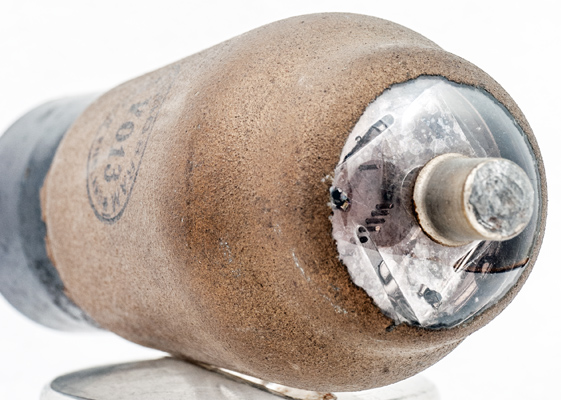

The reverse of the envelope is plain gold coloured zinc paint.
The classic envelope is 46 mm in diameter and, excluding the B7 base pins, is 113 mm tall.
Reference: 1043. Type VO13 was first introduced in 1935.



Pin Connections
B7
1
2
3
4
5
6
7
tc
g2
g1
g3,g5
h
h
m,k
a
g4



Absolute Maximum Operating Conditions
Octode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
13.0
0.2
250
70
-1.5
1.6
3.8
1M
0.6
