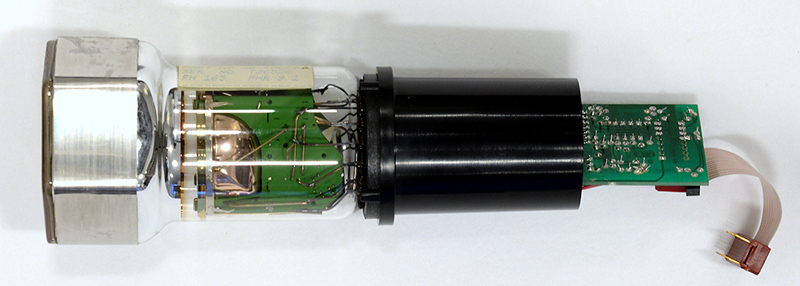

This exhibit is a photomultiplier that was once part of a piece of medical X-Ray apparatus.

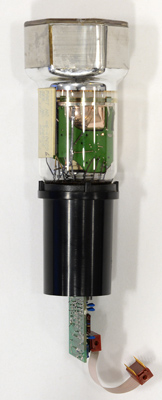

The dynodes are under the paper label. The circuit board is integrel to the tube and looks like the pre-amplifier.

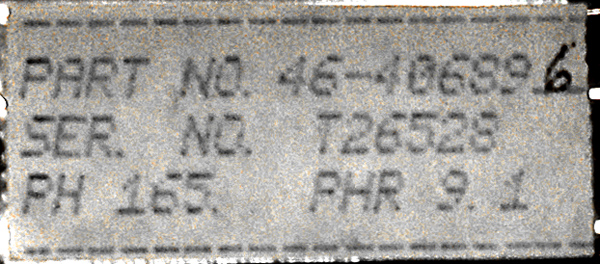

The paper label carries this information but no details can be found.

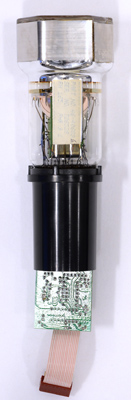

Another circuit board is held within the vacuum envelope.

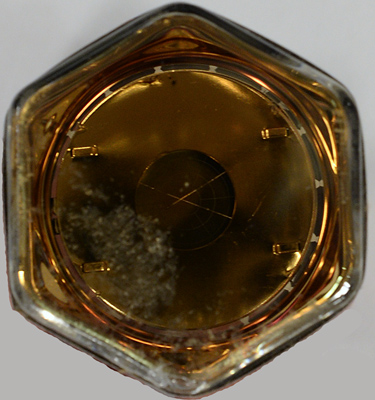

The entry window and photo-cathode.

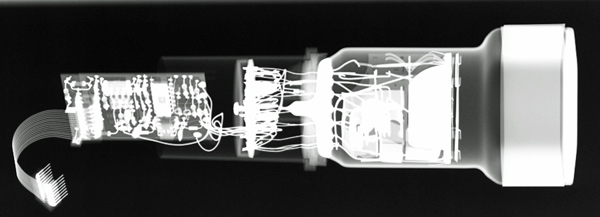

Here the tube is seen in the form of an X-Ray image.
The wide glass tube envelope is 60 mm in diameter, and excluding the base pins is 215 mm tall.
References: Observation.
