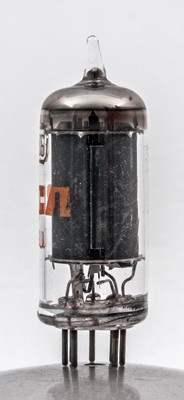

The 6HS6 is a sharp cut-off pentode with a controlled warm-up time of 11 seconds. The design purpose is as an IF amplifier and limiter in FM receivers.![](../pics/abv0013a.jpg)

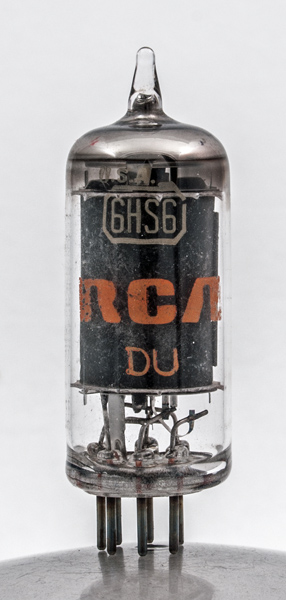

The anode obscures the inner details.The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 47 mm tall.References: Data-sheet. Type 6HS6 was first introduced in 1962. See also 1962 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ![](../static/key.gif) g1 | g3,s | h | h | a | g2 | k |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | ![](../static/pdflogo.gif)
| 6.3 | 0.45 | 300 | 300 |
|
