RV12P4000



Extras ▼

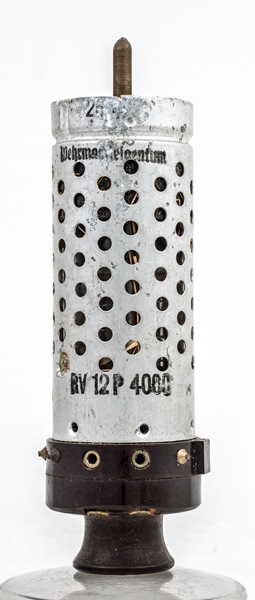

The RV12P4000 is an HF pentode for use in RF and IF stages. The actual envelope is hidden within the external aluminium screen. The design follows the practice of the time of having a handle to allow replacement to be carried out 'in the field'.

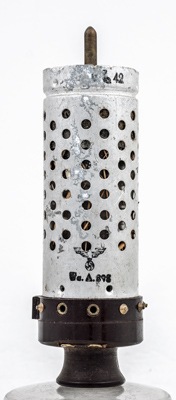

The military logo.

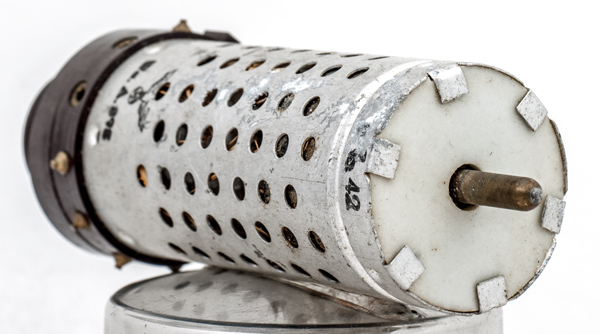

The top pin connects to the control grid. The holder would provide additional screening for the whole length of the valve.

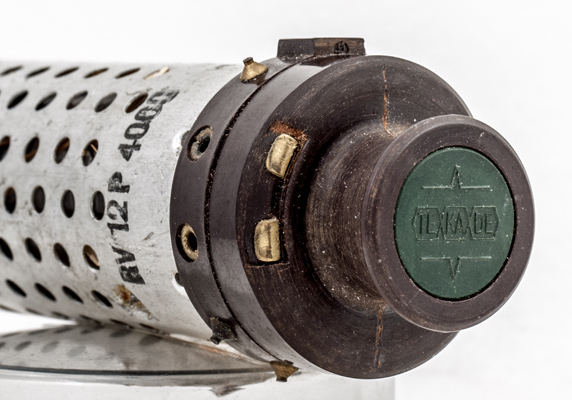

The handle carries the TeKaDe name and logo.
The wide metal tube envelope is 29 mm in diameter and, including the base pins, is 109 mm tall.
Reference: Datasheet. Type RV12P4000 was first introduced in 1935.



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
12.6
0.2
200
100
-1.6
3.0
1.1
1M
2.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 27, 2019.
shape:wide.metal.tube construction:pinch type:pentode age:1930.1940 base: heater:12.6v pins:6 pin:
