RV2P800



Extras ▼

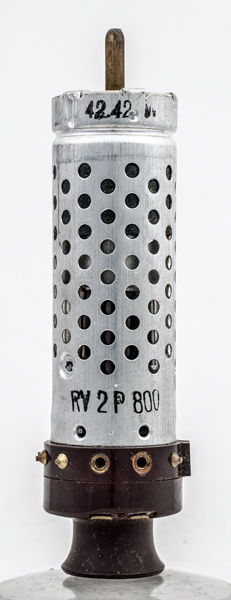

The RV2P800 is a directly heated battery HF pentode with an oxide coated filament. It was designed for German military equipment during WWII.
Wehrmacht appears on items between 1936 and 1945 and Wehrmacht eigentum means property of the Wehrmacht.

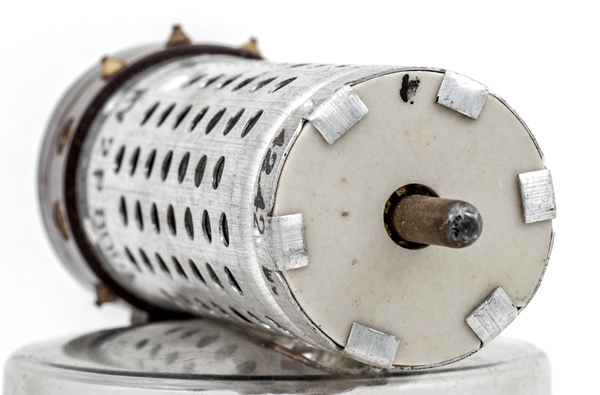

The top pin is the control grid.

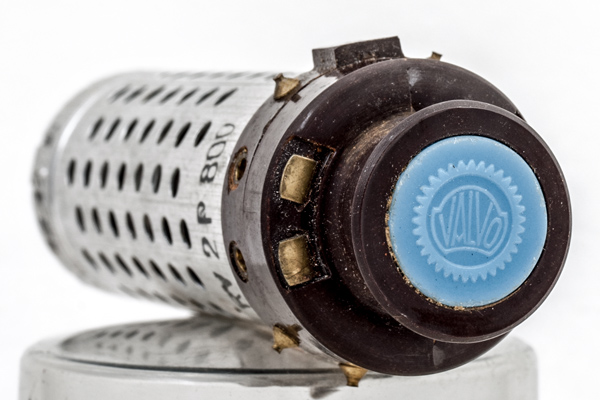

The handle carries the Valvo name and logo.
The wide metal tube envelope is 26 mm in diameter and, excluding the base pins, is 110 mm tall.
Reference: Datasheet. Type RV2P800 was first introduced in 1935.



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
1.9
0.18
120
80
-1.5
3.5
0.8
0.5M
1.05
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 27, 2019.
shape:wide.metal.tube construction:pinch type:pentode age:1930.1940 base: pin:
