LDR03


See also:
Valvo LDR03 Box

Extras ▼



The LDR03 is a cadmium sulphide light dependent resistor and in size looks much the same as the Mullard ORP12. Unlike vacuum photo-conductive tubes the LDR is much slower to react to light changes mS not μS. For process control or photographic enlarger controls they worked very well

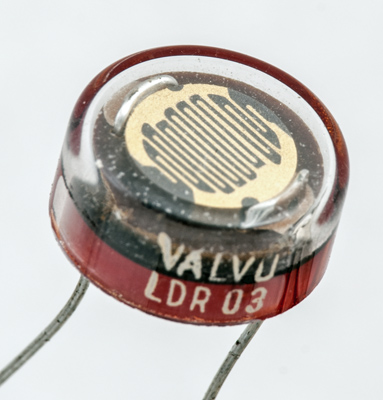

The active material placed on a ceramic substrate.

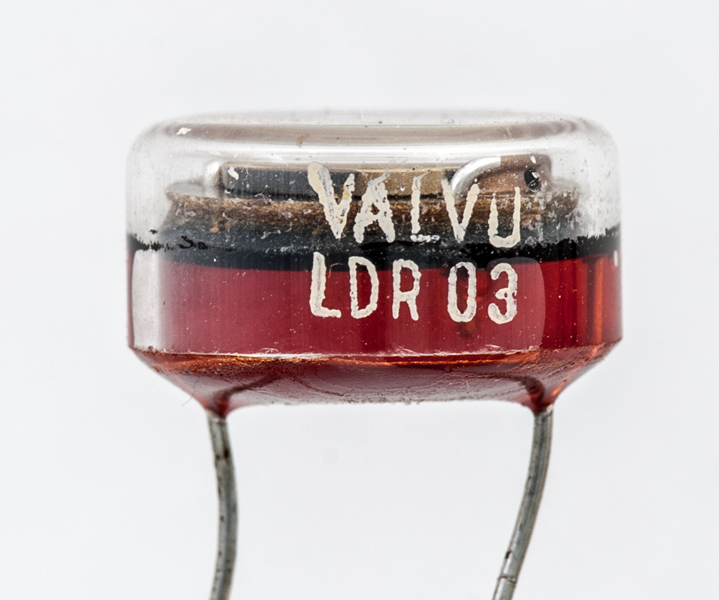

The thin glass tube envelope is 14 mm in diameter and, excluding the base wires, is 8 mm tall.
Reference: Data-sheet.



Absolute Maximum Operating Conditions
Pentode
Va
200
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 15, 2020.
shape:thin.glass.tube construction:all.glass type:photocell age:1960.1975 base: pins:2 pin:
