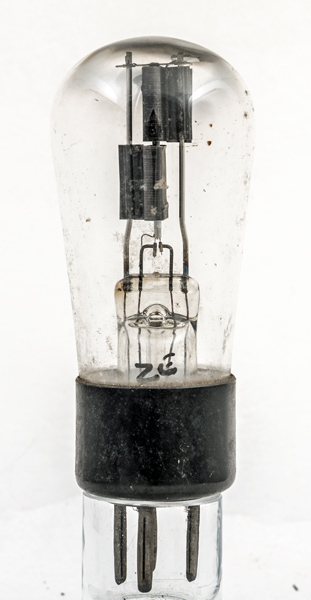

The IW2 is an indirectly heated full wave rectifier with the original UK standard heater of four volts.

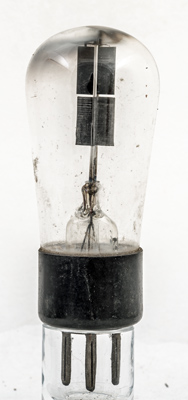

Side view of the anodes.

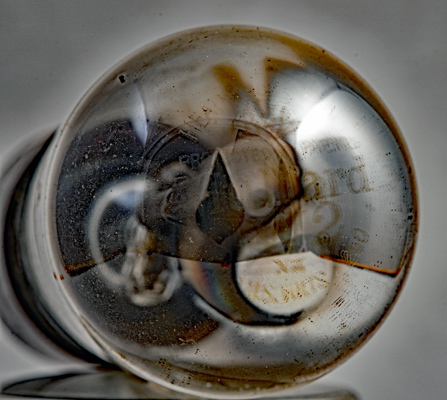

The feint etching on the dome carries the Mullard name and the IW2 Type designation. Also the basic parameters are included.

The balloon envelope is 45 mm in diameter and, excluding the B4 base pins, is 100 mm tall.

References: Data-sheet, Data, & ¹⁰⁴³. Type IW2 was first introduced in 1933. See also 1933 adverts.

Pin Connections

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
