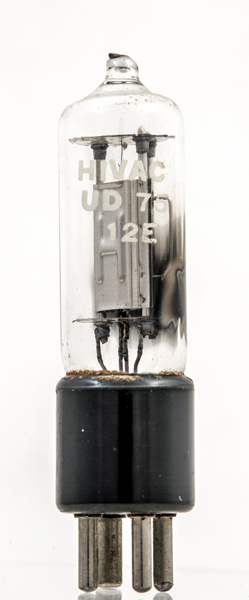

This exhibit is a directly heated diode from Hivac. It has a single hairpin filament held in a tension spring at the top. However, we can find no details of this device.

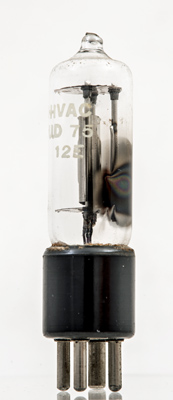

The side view and the rest of the printed lettering.

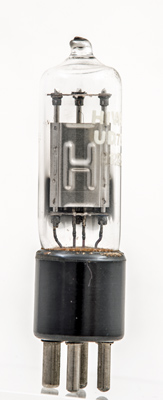

Face view of the bright anode. The moulded H imparts rigidity to the thin nickel anode. The tension spring sits above the top mica and is a coil with a central hook holding the filament loop.The thin glass tube envelope is 15 mm in diameter and, excluding the Sm4 base pins, is 53 mm tall.Reference: Observation. |
Updated March 04, 2023.
|
|
