AC/S1VM

Extras ▼

Mazda TNMoC The National Museum of Computing - Valves

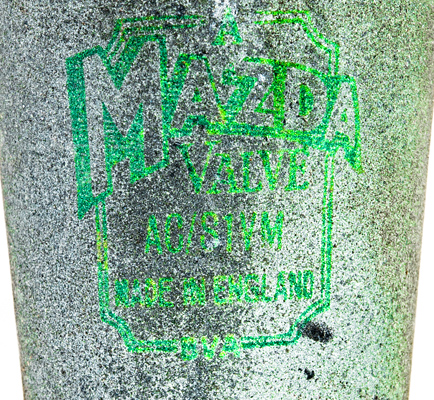

The Green paint of the Mazda identification.

Enhanced image to show the lettering.

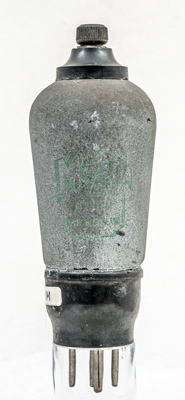

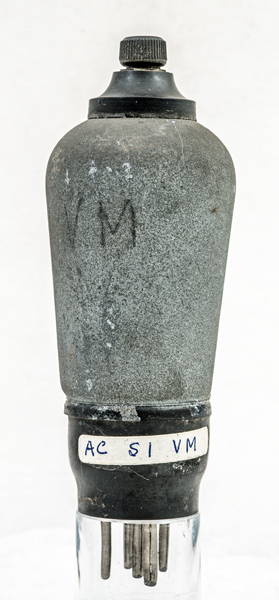

The balloon envelope is 45 mm in diameter and, excluding the B5 base pins, is 112 mm tall.

References: Data-sheet & Data. Type AC/S1VM was first introduced in 1932. See also 1932 adverts.

Pin Connections

B5	1	2	3	4	5	tc
	g2	g1	h	h	k,g3	a

Absolute Maximum Operating Conditions^¶

Tetrode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	4.0	1.0	200	75	-1.5	4.5	0.8	700k	1.1

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated March 14, 2023.
