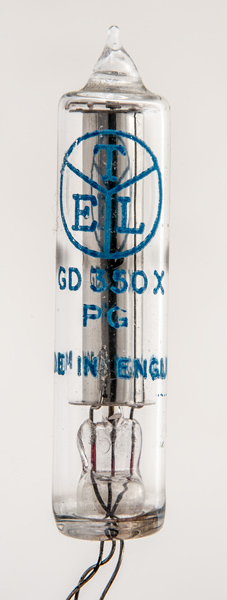

The GD350X is a corona voltage stabiliser for very low current applications, such as voltage reference.

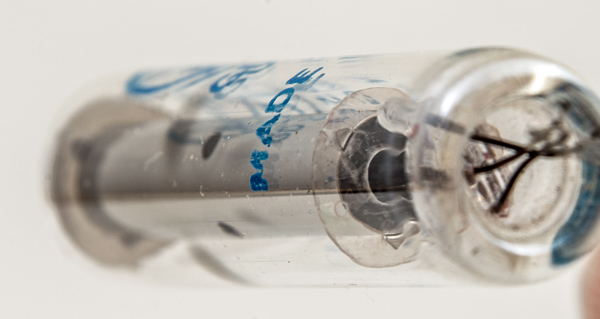

The outer cylinder is the cathode.

The inner cylinder is the anode.

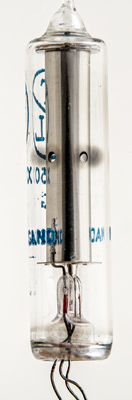

The thin glass tube envelope is 12 mm in diameter and, excluding the base wires, is 53 mm tall.

Reference: Data-sheet.

Pin Connections

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
