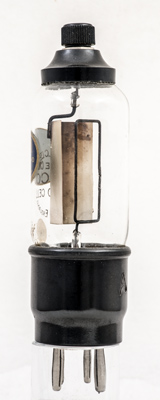

The OSram CM8 is a photocell with the cathode connected to the top cap. The design looks to date from the 1930s.

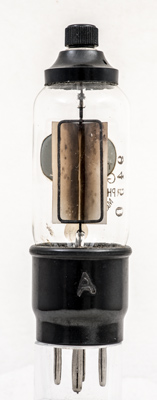

The rectangular wire anode.

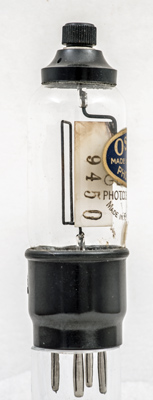

The photocathode has an included angle of about 80°. The anode pin is marked on the base.

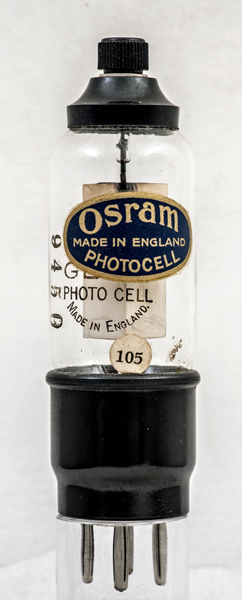

Oblique view.The wide glass tube envelope is 34 mm in diameter and, excluding the B4 base pins, is 107 mm tall.References: Observation. |
Updated June 09, 2024.
|
|
