The 1D6 is a half wave rectifier designed for universal (AC/DC) receivers that use a series heater chain and do not have a mains transformer.
This exhibit has a perforated anode whereas our other 1D6 has a solid plate anode.
The anode looks like three cylinders side by side.

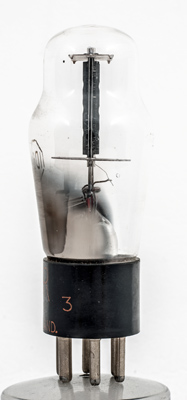

The anode side view.

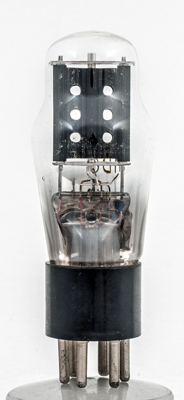

The anode seen from the front (or back).
The classic envelope is 38 mm in diameter, and excluding the UX6 base pins is 92 mm tall.
References: Datasheet, 1040 & 1043. Type 1D6 was first introduced in 1947.



Pin Connections
UX6
1
2
3
4
5
6
h
a
-
k
a
h



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
25
0.3
250
100
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 28, 2018.
shape:classic construction:pinch type:rectifier.hw age:1940.1950 base:ux6 heater:300ma pins:6 pin:1.h pin:2.a pin:3.- pin:4.k pin:5.a pin:6.h
