The Type 18 is an audio output pentode. The anode dissipation is 11 Watts, the load impedance should be 7,000 Ω and the cathode bias resistor 410 Ω.
Under these conditions an audio power output of 3.2 Watts is to be expected.

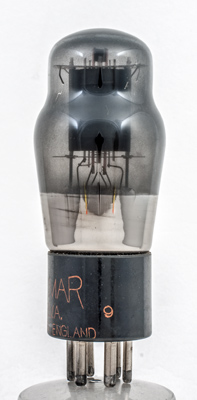

Through the internal coating the electrode system can be seen.

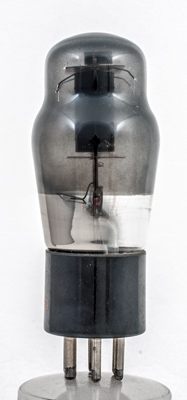

Side view of the anode.

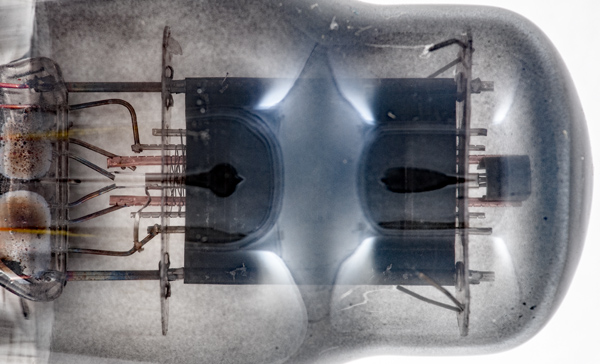

A closer view of the internal structure. The control grid is wound on copper supports and has radiating fins above the top mica. G3 is internally connected to the cathode.
The classic envelope is 44 mm in diameter, and excluding the UX6 base pins is 102 mm tall.
References: Datasheet & 1040. Type 18 was first introduced in 1937.



Pin Connections
UX6
1
2
3
4
5
6
h
a
g2
g1
k,g3
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
14.0
0.3
385
285
-20.0
38
7.0
80,000
2.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 28, 2018.
shape:classic construction:all.glass type:pentode age:1930.1940 base:ux6 heater:300ma pins:6 pin:1.h pin:2.a pin:3.g2 pin:4.g1 pin:5.k.g3 pin:6.h
