EF800



Extras ▼



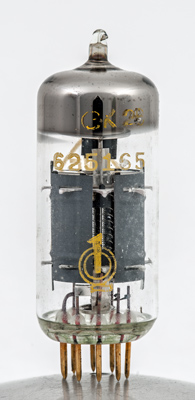

The EF800 is a special quality RF pentode that was designed for RF or IF use. It is pin compatible with the ubiquitous EF80.
The WF logo indicates that the maker was RFT in Berlin in the then East Germany.
Additional logo and makers data.

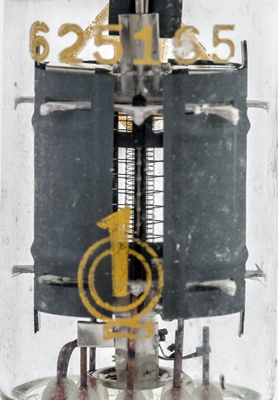

The three wire grids are very clearly seen through the side wall of the anode.
The thin glass tube envelope is 21 mm in diameter, and excluding the B9A base pins is 54 mm tall.
Reference: Datasheet. Type EF800 was first introduced in 1952.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k
g1
k
h
h
s
a
g2
g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
6.3
0.275
170
170
-1.0
10.0
2.5
7.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 17, 2019.
