V247C/1K


See also:
Heil Tube

Extras ▼

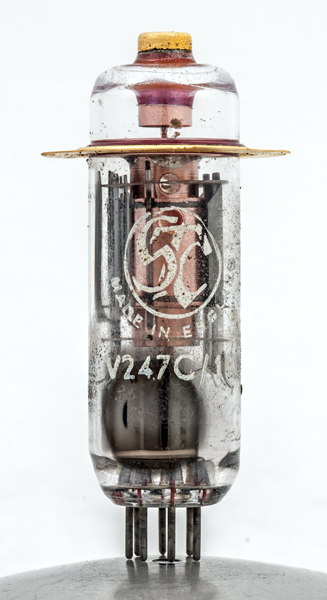

The V247C/1k is a velocity modulated microwave oscillator or Heil Tube. The operating frequency is in the range 4.57 - 4.75 GHz.
The construction is detailed in the data-sheet as is the method mounting within the magnet.

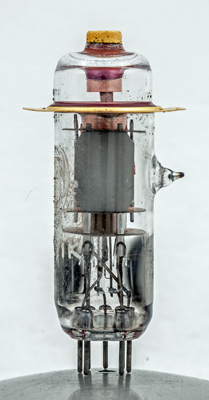

The evacuation pip on the side of the glass tube.

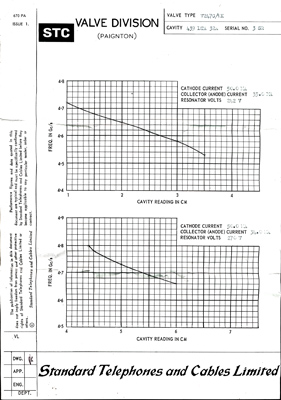

The valve was packed in foam that had disintegrated to a sticky mess. Also inside the box was this specific data sheet.
The thin glass tube envelope is 19 mm in diameter, and excluding the B7G base pins is 59 mm tall.
Reference: Datasheet. Type V247C/1K was first introduced in 1955.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
r
g2



Absolute Maximum Operating Conditions
Heil Tube
Vh
Ah
6.3
0.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 08, 2019.
shape:thin.glass.tube construction:all.glass type:heil.tube age:1950.1960 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.k pin:3.h pin:4.h pin:5.a pin:6.r pin:7.g2
