V190C/1M



Extras ▼

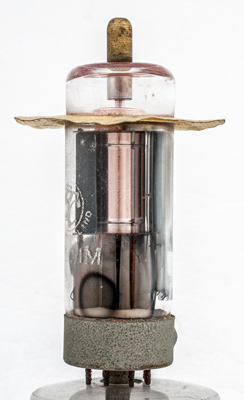

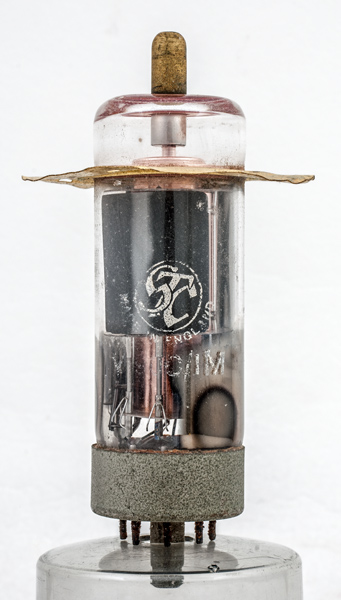

The V190C/1M is a velocity modulated oscillator or Heil Tube. This version was designed to operate in the range 0.8 - 1 GHz.
Full details and images of structure and mounting are found in the attached PDF.

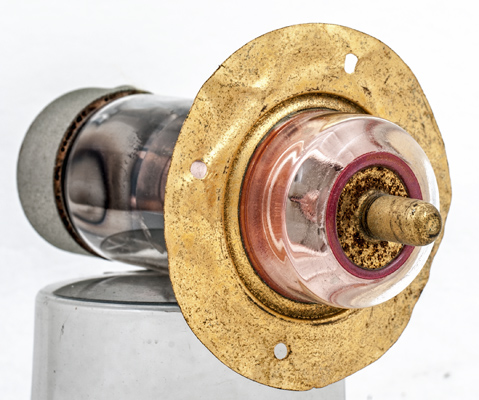

The drift tube connection is the top cap.

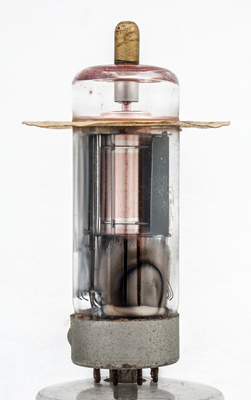

The other side.

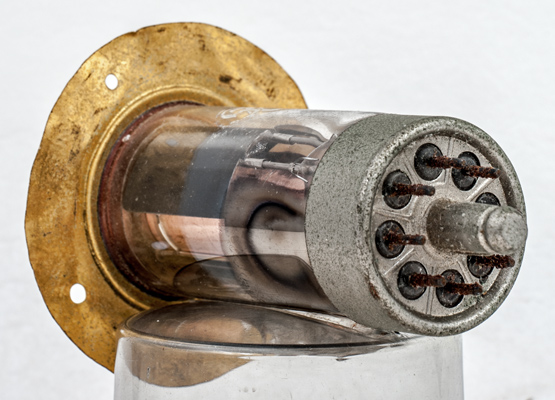

The base pins. The base is referred to as B8B or B8G or Loctal and all seem to describe the same physical base.
The large brass resonator disc is 55[k[mm in diameter.
The wide glass tube envelope is 29 mm in diameter, and excluding the base pins is 93 mm tall.
Reference: Datasheet. Type V190C/1M was first introduced in 1956.



Pin Connections
B8B
1
2
3
4
5
6
7
8
tc
h
k
r
g2
-
a
g1
h
Drift Tube



Absolute Maximum Operating Conditions
Heil Tube
Vh
Ah
6.3
1.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 11, 2019.
shape:wide.glass.tube construction:all.glass type:heil.tube age:1950.1960 base:b8b heater:6.3v pins:8 pin:1.h pin:2.k pin:3.r pin:4.g2 pin:5.- pin:6.a pin:7.g1 pin:8.h pin:tc.drift tube
