E2019



Extras ▼

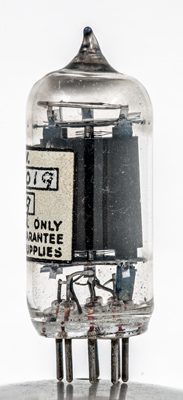

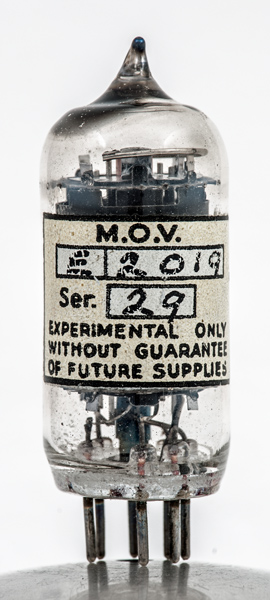

The E2019 is a development pentode from M-OV.

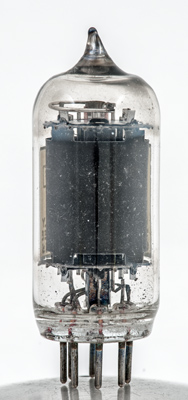

The top of the anode shows the three wire grids.
The control grid is wound on a copper support.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 44 mm tall.
Reference: Observation.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
g3
h
h
a
g2
k



Updated April 14, 2019.
shape:thin.glass.tube construction:all.glass type:pentode age:1950.1960 base:b7g pins:7 pin:1.g1 pin:2.g3 pin:3.h pin:4.h pin:5.a pin:6.g2 pin:7.k
