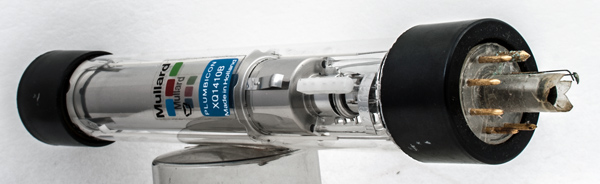

The XQ1410B is a blue sensitive Plumbicon television camera tube.

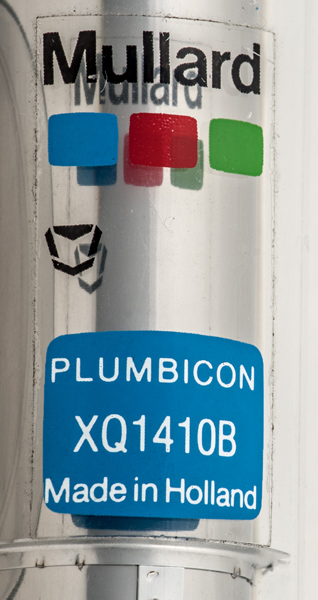

The lead oxide target camera tube was a Philips invention and was used in broadcast television. This exhibit is branded mullard but was made in Holland by Philips.
The Plumbicon lacked the high edge definition of the Image Orthicon tubes but had the advantage of a high signal to noise ratio.
The Plumbicon camera tube has also been extensively used in medical imaging technology. When television changed to solid state cameras the medical imaging use remained.
The attached PDF is from Amperex (North American Philips) and describes this generation of camera tubes in detail.
The base tube is broken but the vacuum looks to be complete. The wires on the base are not indicated on the data-sheet.

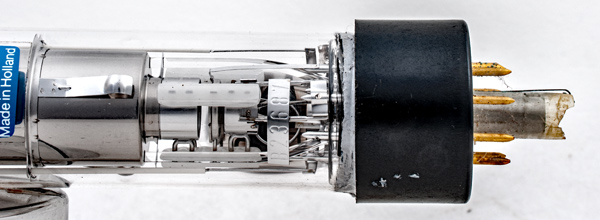

The electron gun assembly.

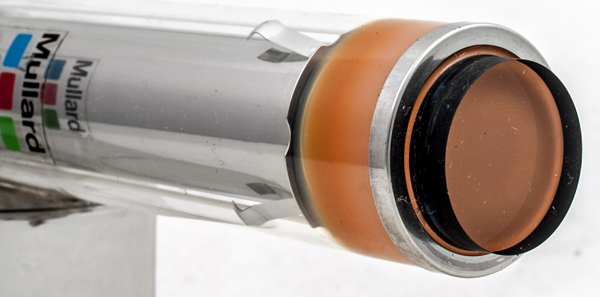

The lead oxide target and front window.
The wide glass tube envelope is 30 mm in diameter, and excluding the base pins is 198 mm tall.
Reference: Datasheet.



Absolute Maximum Operating Conditions
Camera
Vh
Ah
6.3
0.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 08, 2019.
shape:end.window construction:glass.foot type:camera.tube age:1960.1975 base: heater:6.3v pins:8 pin:
