The CV1872 is a dummy load lamp able to sink 200 Watts and operate in the low to medium HF region of the spectrum. Upper frequency is given as 20 MHz.
Click here for the data-sheet.
We also have the CV1877 a 100 Watt dummy load.

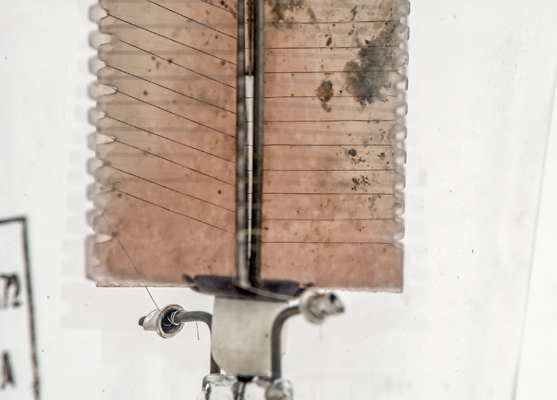

The crossed mica supports hold the resistance wire that forms the load.

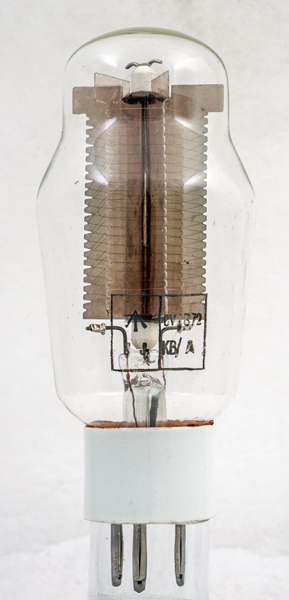

The classic envelope is 57 mm in diameter and, excluding the B4 base pins, is 124 mm tall.
Reference: Data-sheet.



Pin Connections
B4
1
2
3
4
-
-
f
f



Thanks to Frank Philipse for supplying the above PDF datasheet.
