GR10M



Extras ▼

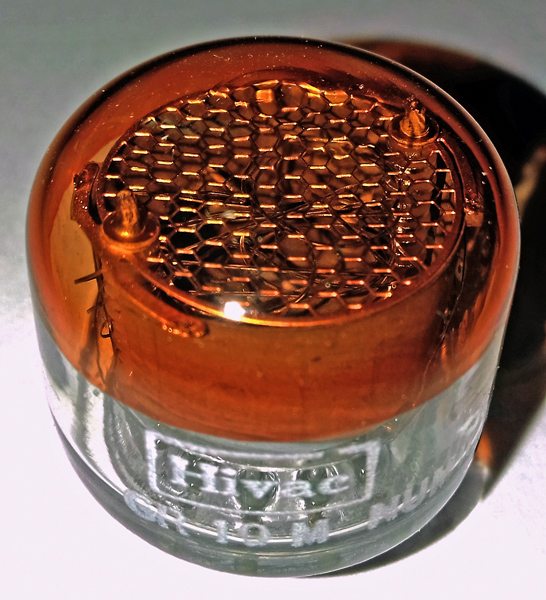

The Hivac GR10M is a long life end viewing cold cathode numerical indicator tube. Also called a Nixie tube.

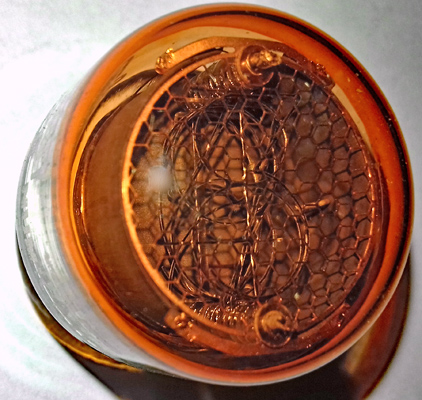

The construction is as a set of shaped metal cathodes stacked vertically behind a mesh anode.

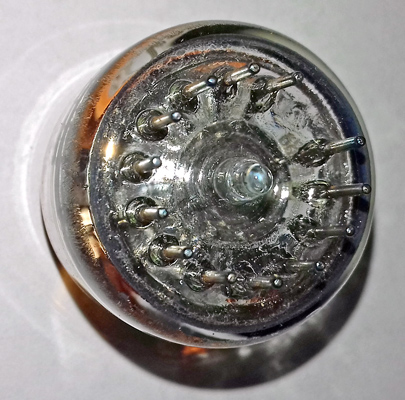

The 13 pin base.
Thanks to Mark Mallison for sending the images.
The end window envelope is 30 mm in diameter, and excluding the B13B base pins is 26 mm tall.
Reference: Data-sheet.



Pin Connections
B13B
1
2
3
4
5
6
7
8
9
10
11
12
13
nc
a
k0
k9
k8
k7
k6
nc
k5
k4
k3
k2
k1



Absolute Maximum Operating Conditions
Indicator
Va
140
Thanks to Frank Philipse for supplying the above PDF datasheet.
