The W101 is a variable μ amplifier pentode on a Loctal (B8B) base. Use would be at RF or IF frequencies in AC/DC receiver equipment. The W81 is the same valve but fitted with a 6.3 Volt heater for AC mains sets.

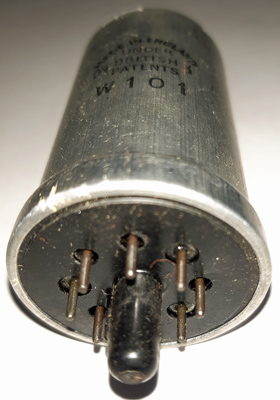

The Loctal base pins.
Thanks to Mark Mallison for sending the images.

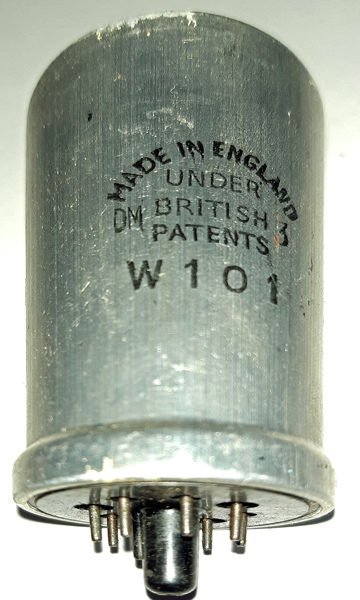

The wide glass tube envelope is 32 mm in diameter, and excluding the B8B base pins is 59 mm tall.
Reference: 1040. Type W101 was first introduced in 1947.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
g2
g3
s
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
19
0.1
250
100
-3.6
9.6
3.6
-
2.8
Updated March 04, 2020.
