The EL6 is an audio output pentode with an anode dissipation of 18 Watts.

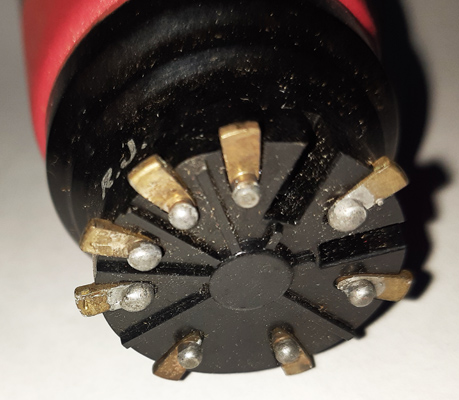

The Ct8 base connections. The outer edges make contact with the base springs.Thanks to Mark Mallison for sending the images.The classic envelope is mm in diameter, and excluding the Ct8 base pins is mm tall.Reference: Data-sheet. Type EL6 was first introduced in 1938. See also 1938 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |  nc | h | h | k | nc | g1 | g2 | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | Pdiss |
| 6.3 | 1.25 | 100 | 100 | - | 100 | 7.0 | 12W |
|
Updated December12, 2024.
|
|
