Audion


See also:
The Hudson Filament

Extras ▼

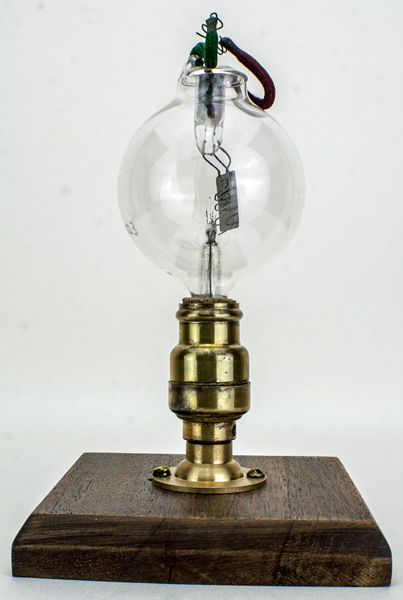

This audion was made by McCandless for De Forest in 1913. It has a single control grid and anode but a double Hudson filament.

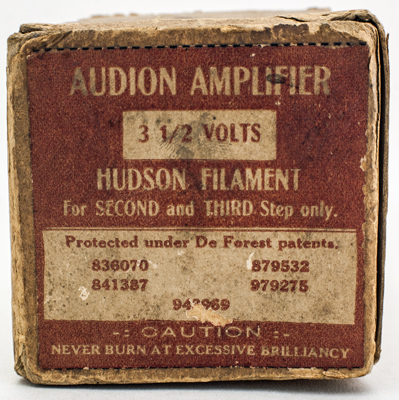

The base of the original box.
Thanks to Joe Gruber for sending the images.
The balloon envelope is 50 mm in diameter and, excluding the base, is 76 mm tall.
Reference: Joe Gruber. Type Audion was first introduced in 1911.



Updated September 22, 2020.
shape:balloon construction:pinch type:triode age:pre.1920 base: pin:
