UB41

Extras ▼

Mullard Valves Donated by Chris Huggett Other UB41 exhibits

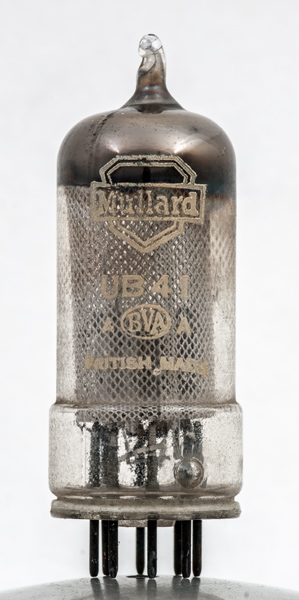

The UB41 is a double diode typically used for signal detection and similar applications. This Mullard exhibit was made in the UK.

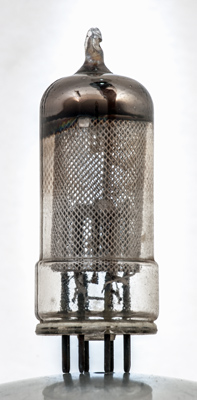

Looking through the screen, a small lower dark patch and two side getter holder supports can be seen.

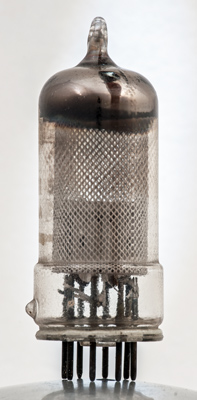

Here the image resolves into a pair of diodes and a centre screen.

The thin glass tube envelope is 20 mm in diameter, and excluding the B8A base pins is 53 mm tall.

Reference: Data-sheet.

Pin Connections

B8A	1	2	3	4	5	6	7	8
	h	nc	k(2)	a(2)	s	a(1)	k(1)	h

Absolute Maximum Operating Conditions^¶

Diode	Vh	Ah	Va	mAa
	19.0	0.1	165	9.0

Thanks to Frank Philipse for supplying the above PDF datasheet.
