The B14A or diheptal base was introduced in the later 1950s and was used on cathode-ray and camera tubes - notably the image orthicons.

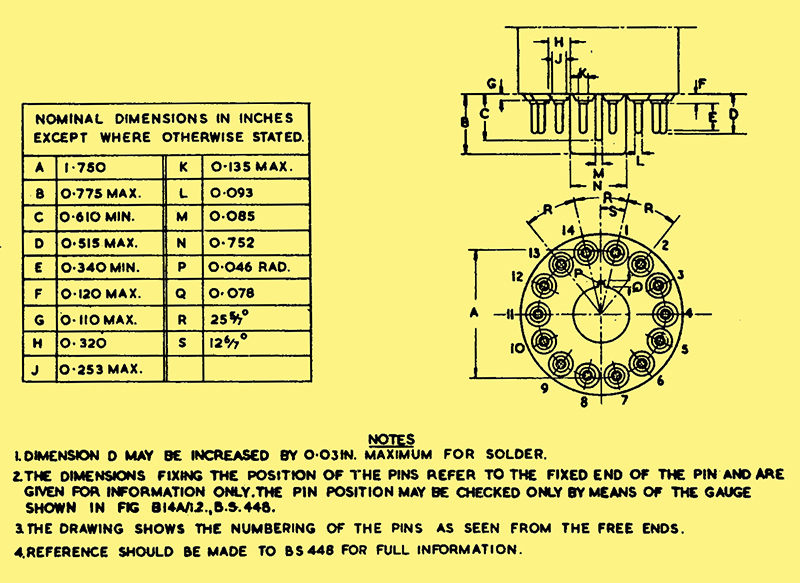

The B14A has 14 pins arranged on a 45 mm diameter circle. Numbering is clockwise when looking into the base of the valve.
|
