Base B5J


Extras ▼



The B5J/F base was introduced by Mullard for their all glass sub miniature electrometer valves. In all cases the anode is denoted by a red paint spot adjacent the anode lead.

The flying leads are spaced at 80° apart with pin one and four spaced by 120° when viewed from the base.

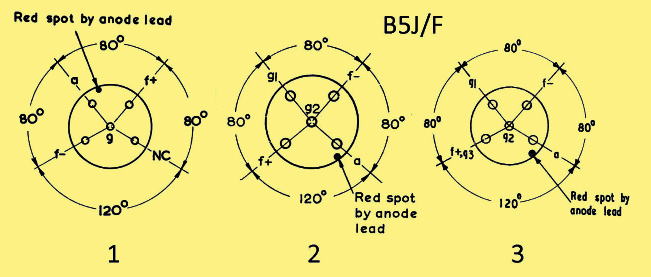

The pin-outs below refer to the data researched by Keith R Thrower OBE.
