Base B9D

Extras ▼


The B9D, or Magnoval, base was introduced for all glass power valves, typically line output or 'sweep tubes' for television use. Introduction date was around 1962 with the PL500 from Mullard

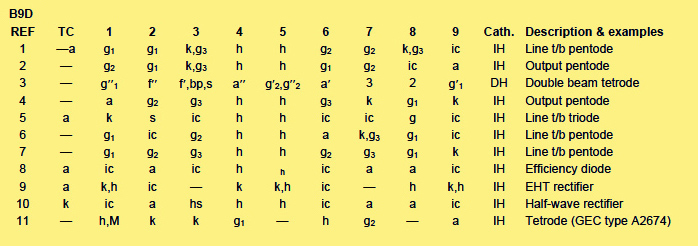

The pin-outs below refer to the data researched by Keith R Thrower OBE.
