Peanut Base

Extras ▼

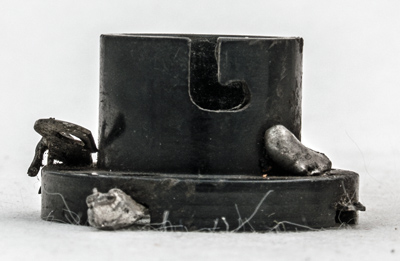

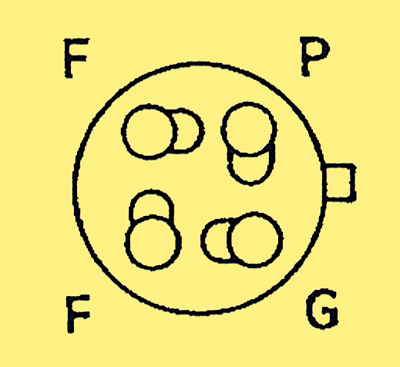

The Peanut four pin bayonet base was introduced in 1919 for the miniature Type N that became the 215A tube in the early 1920s.

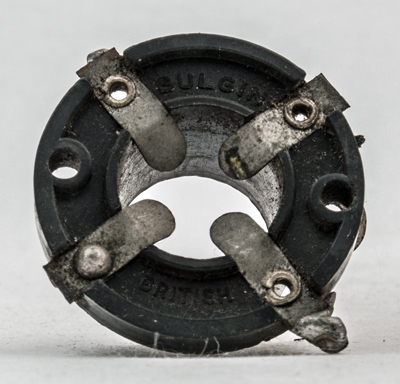

The underside of the base showing the spring connections.

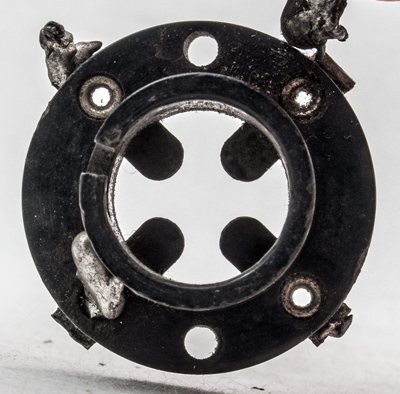

Looking down on the base. Note the notch for the locating pin.
