Base UX5


Extras ▼



This is the American five pin base. The original 1925 five pin base UY or UY5 differs only in the height of the moulded base. The pin diameter and spacing remain the same.

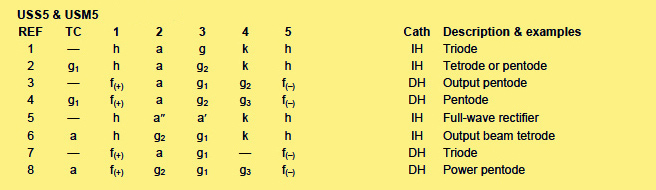

The pin-outs below refer to the data researched by Keith R Thrower OBE.

Use browser back button to return.
baseux5
