CV595

Sensibly equivalent to:
6SH7GT

Extras ▼

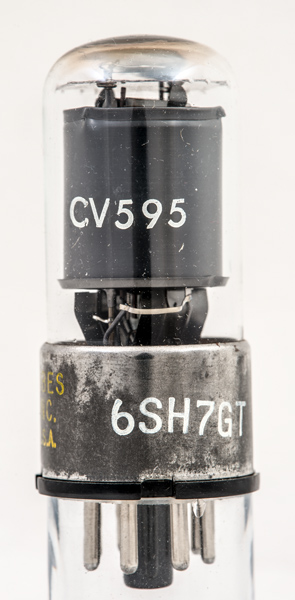

The CV595 (commercially the 6SH7GT) type was designed for wideband RF and IF amplification and has a relatively high gm value to ensure a good gain-bandwidth product.
The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 66 mm tall.
References: Data-sheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
k
g1
k
g2
h
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
150
-1.0
10.8
4.1
0.9M
4.9
Thanks to Frank Philipse for supplying the above PDF datasheet.
