XR1-1600



Extras ▼

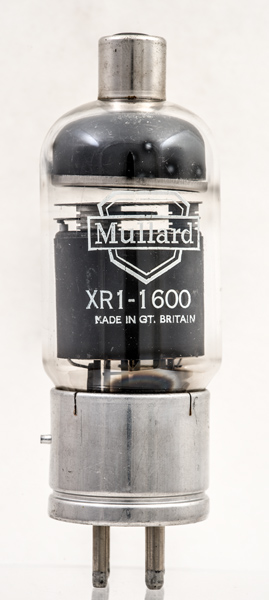

The XR1-1600/CV3706 is a triode Thyratron designed for industrial control applications. The peak current is 20 Amps.
It was redesigned in 1961 as the XR1-1600A.

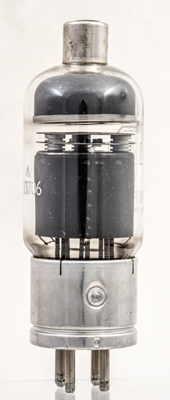

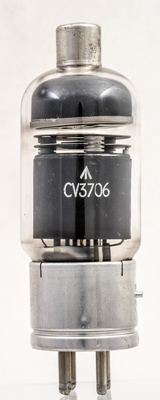

The CV3706 designation is also on the envelope.
The UX4 base has a locating pin for bayonet base.
The wide glass tube envelope is 39 mm in diameter, and excluding the UX4 base pins is 103 mm tall.
Reference: Data-sheet. Type XR1-1600 was first introduced in 1959. See also 1959 adverts.



Pin Connections
UX4
1
2
3
4
tc
f
fct
g1
f
a



Absolute Maximum Operating Conditions
The Thyratron
Vh
Ah
Va
mAa
2.5
9.5
1,500
1,600
PDF scanned from an original document held by the museum
