XR1-1600ASensibly equivalent¶ to:
|
|
|

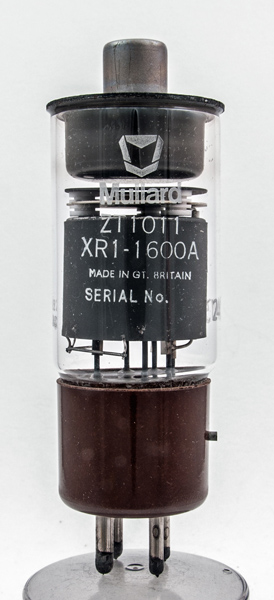

The XR1-1600A or ZT1011 is a triode Thyratron designed for industrial control applications. The peak current is 20 Amps. It was the successor to the XR1-1600. The UX4 base also has a locating pin for bayonet bases.See ZT1011 for more images.The wide glass tube envelope is 38 mm in diameter, and excluding the UX4 base pins is 102 mm tall.Reference: Data-sheet. Type XR1-1600A was first introduced in 1961. See also 1961 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | tc |  f | fct | g1 | f | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | mAa |
| 2.5 | 9.5 | 1,500 | 1,600 |
|
PDF scanned from an original document held by the museum |
