An EF91 Audio Amplifier

by K V R Bowerman, Practical Wireless, February, 1964.

Extras ▼

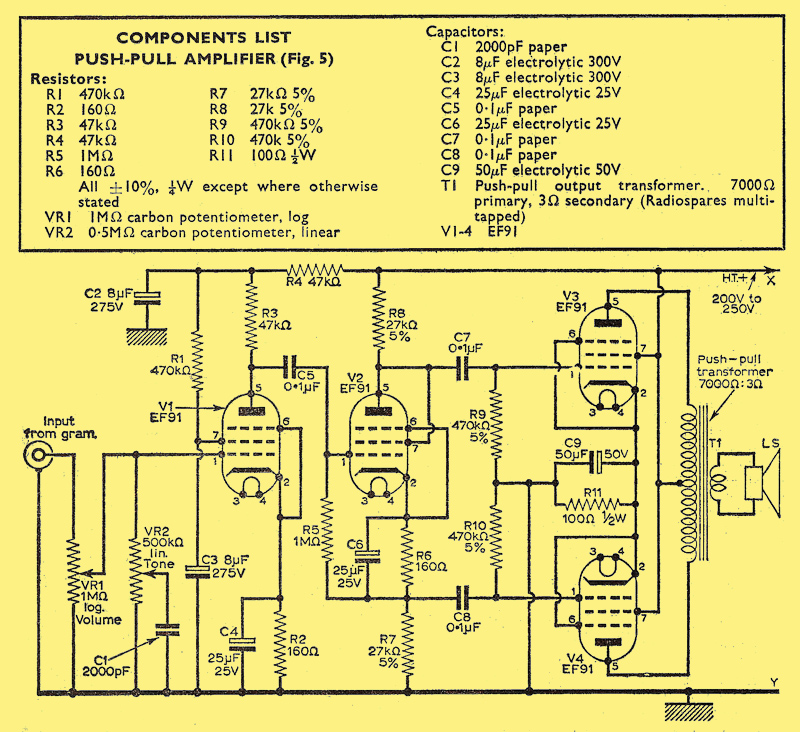

The circuit of the amplifier.

This circuit for an EF91 amplifier is discussed in the article not the valve that won the war.
