QQV03-10

Sensibly equivalent to:
11E13 55B/100K 6360 CV2798 TT24

Extras ▼

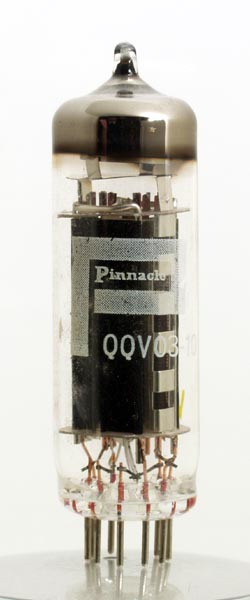

This double beam tetrode is a Mullard design and follows the European pattern of a central common core and two spaced anodes finned for greater heat sinking.

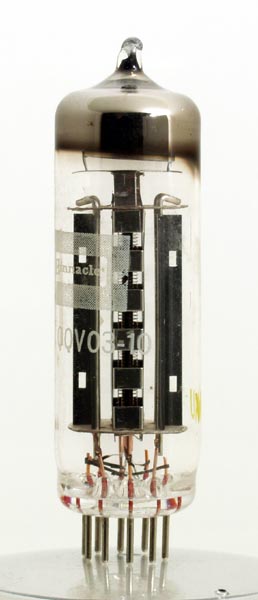

In profile the central cathode and common screen grid can be seen as well as the two anodes at opposite sides of the cathode. The control grids are too close to the cathode to be seen in this picture.
This valve was much used for mobile VHF transmitters, as well as drivers for the larger power valves.
In keeping with the Mullard practice the heater is centre tapped to enable operation from 12.6 Volts as well as the normal 6.3V, thus making them directly suitable for operation from vehicle batteries.
See also CV2798 for detailed pictures of the electrodes.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 69 mm tall.
References: Datasheet & 1040. Type QQV03-10 was first introduced in 1955.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1(1)
k,s
g1(2)
h
h
a(1)
g2,g2
a(2)
hct



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
Pdriv
Pout
Pdiss
freq
6.3
0.83
300
175
-40
76
3
0.5W
14
10W
225
Thanks to Frank Philipse for supplying the above PDF datasheet.
