CV188

Sensibly equivalent to:
7475 CV1070 E1436 GD100A

Extras ▼

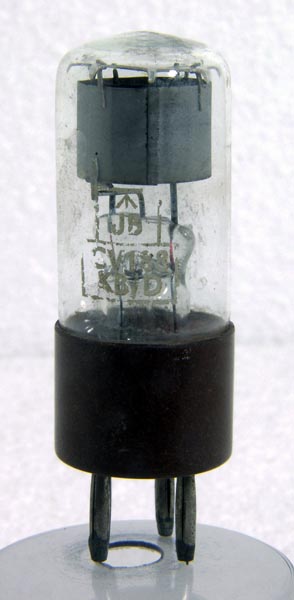

The CV188 voltage stabiliser was designed for accurate regulation. It has a B4 base but the envelope is small and compact. The striking voltage is 140, and once ionisation has occurred the tube can regulate the 100 Volt output to 2 Volts for currents of between 1 and 8 mA. This high stability low current device would be useful for stabilising supplies to oscillators or as a reference voltage in valve voltage stabilisers.
The KB/D identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the D identifies the maker as Mullard Radio Valve Co., Mitcham.
The wide glass tube envelope is 27 mm in diameter and, excluding the B4 base pins, is 63 mm tall.
Reference: Data-sheet & 1040.



Pin Connections
B4
1
2
3
4
a
k
nc
nc



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
100
8
Thanks to Frank Philipse for supplying the above PDF datasheet.
